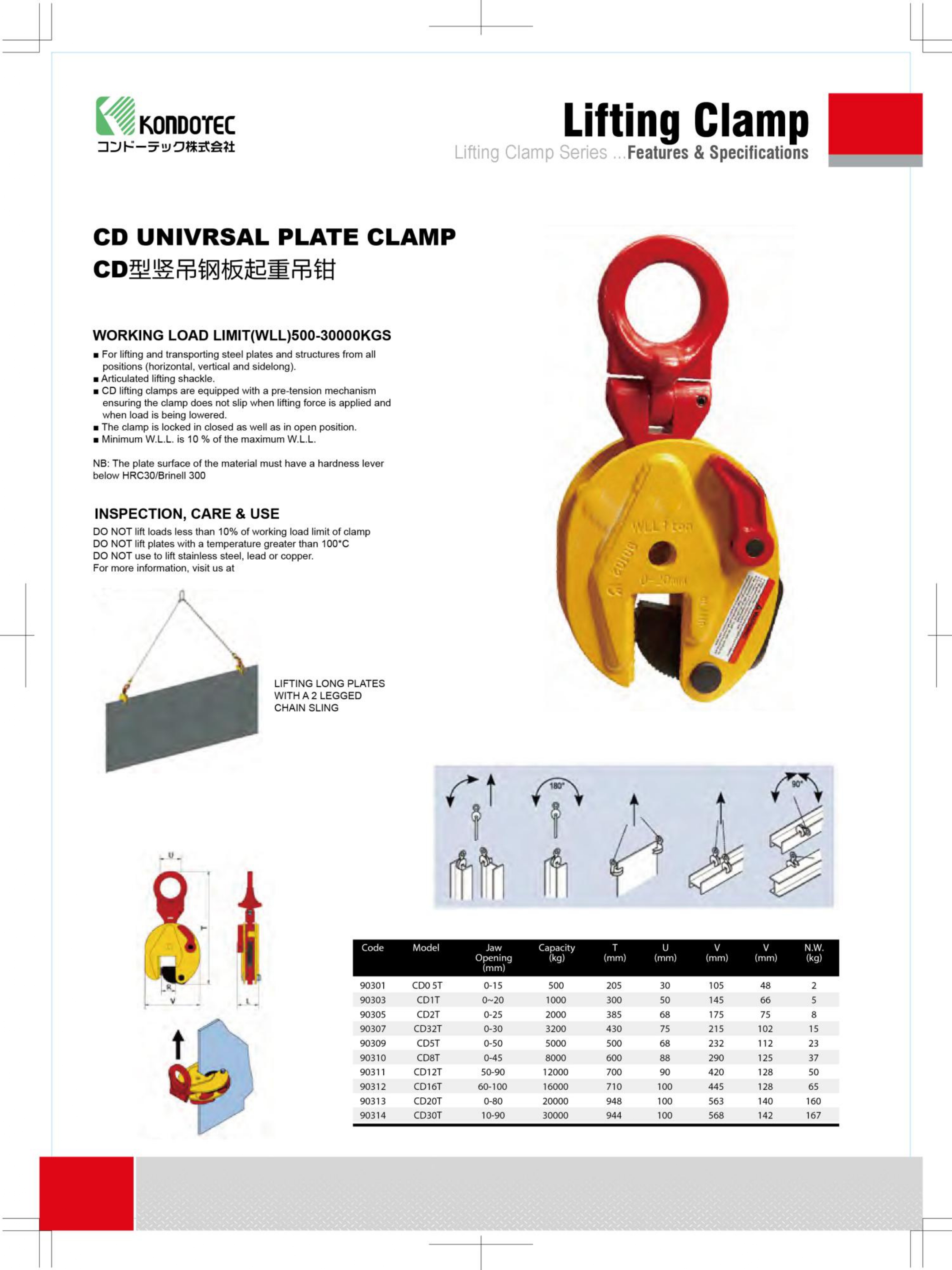

CD UNIVERSAL PLATE CLAMP
CD UNIVERSAL PLATE CLAMP
WORKING LOAD LIMIT(WLL) 500-30000KGS
- For lifting and trasporting steel plates and structures from all positions (horizontal, vertical and sidelong).
- Articulated lifting shackle.
- CD lifting clamps are equipped with a pre-tension mechanism ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
- The clamps is locked in closed as well as in open position.
- Minimul W.L.L is 10 % of the maximum W.L.L.
NB: The plate surface of the material must have a hardness lever below HRC30/Brinell 300
INSPECTION, CARE & USE
DO NOT lift loads less than 10% of working load limit of clamp
DO NOT Lift plates with a temperature greater than 100*C
DO NOT use to lift stainless steel, lead or copper.
