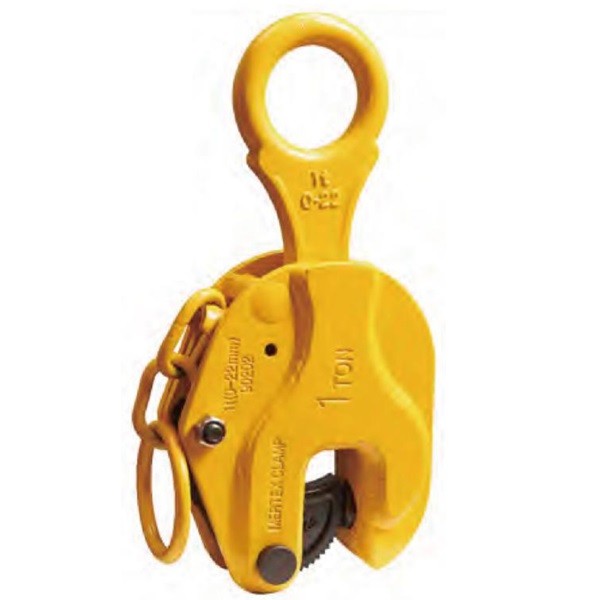

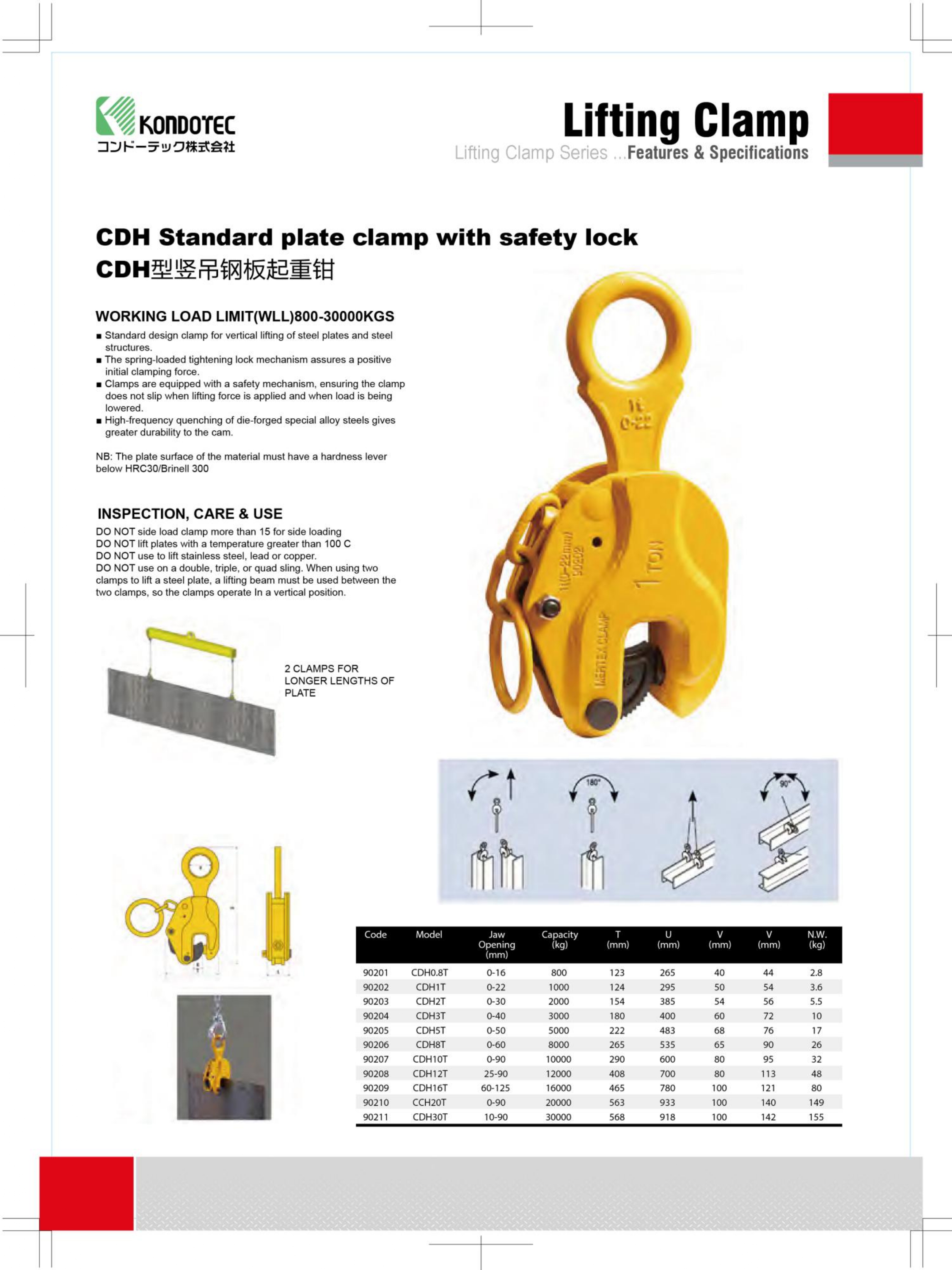

CDH Standard Plate Clamp With Safet Lock
CDH Standard Plate Clamp With Safet Lock

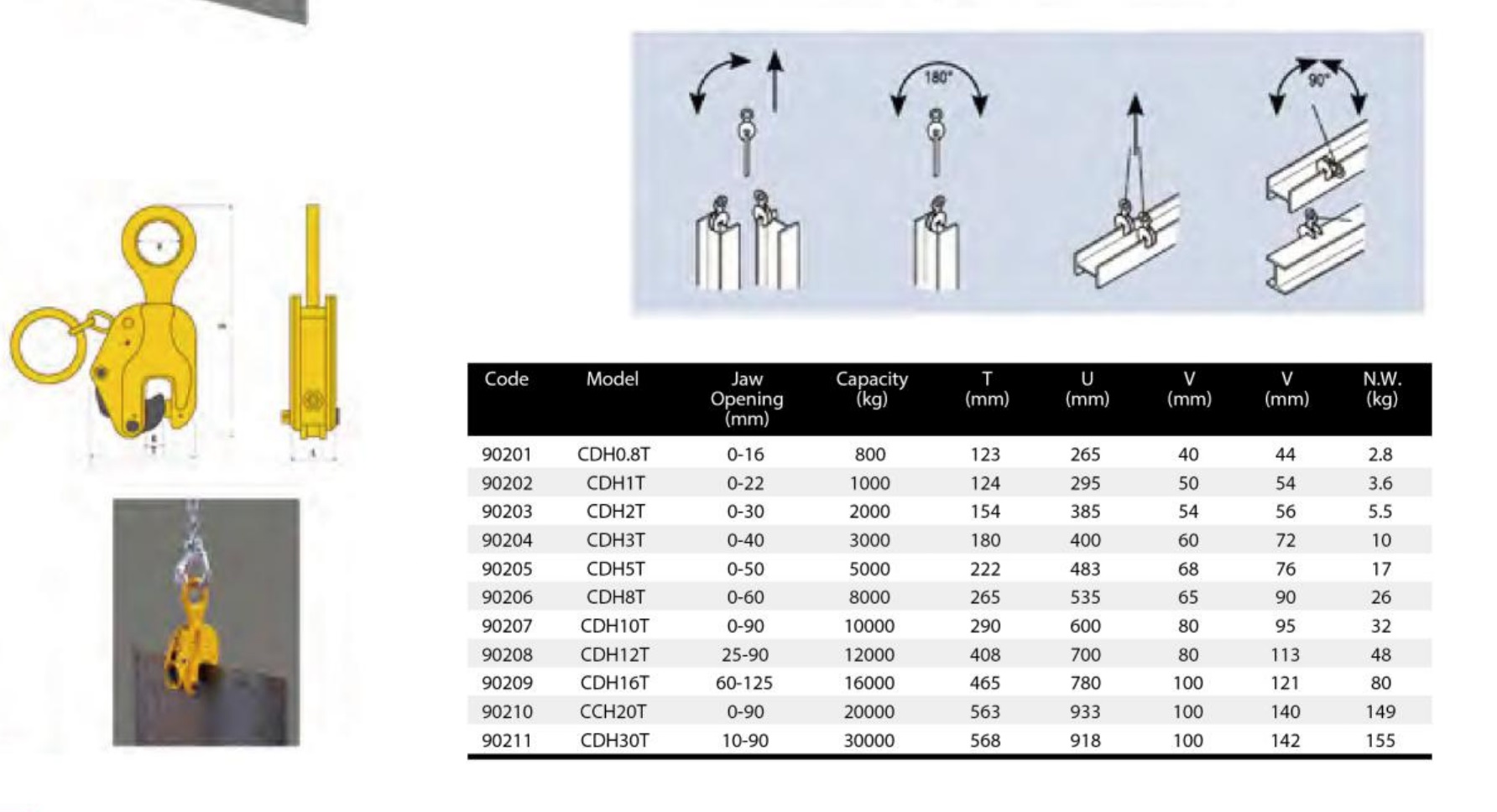

WORKING LOAD LIMIT(WLL)800-30000KGS
- For vertical lifting and transporting of steel plates and structures .
- CDE lifting clamps are equipped with a pre-tension mechanisms ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
- The clamp is locked in closed as well as in open position.
- Minimum W.L.L is 10% of the maximum W.L.L.
NB : The Plate surface of the material must have a hardness lever below HRC30/Brinell 300.
INSPECTION, CARE & USE
DO NOT side load clamp more than 15 for side loading.
DO NOT lift plates with a temperature greather than 100C
DO NOT use to lift stainless steel, lead or copper.
DO NOT use on a double, triple, or quad sling. when using two clamps to lift a steel plate, a lifting beam must be used between the two clamps, so the clamps operate in a vertical position.
