LC Structure clamp
LC Structure clamp

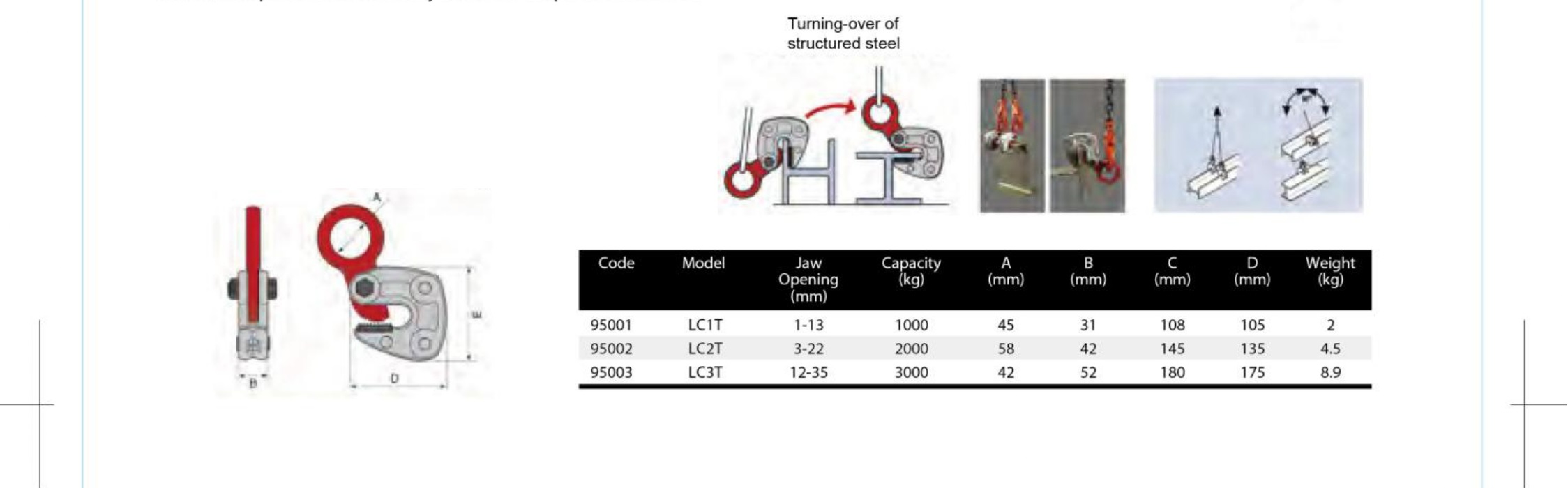

WORKING LOAD LIMIT(WLL)1000-3000KGS
Compact, lightweight, easy to use damp for the horizontal lifting shaped structured steel.
- When the sling wire slackens due to the load coming to rest on the floor, the spring loaded initial clamping force will prevent the clamp from detaching from the work piece. It is no necessary to hold the damp after set it onto the works piece.
- The main body and parts are made from die-forged special alloy steels, which are optimally tempered for maximum strength and durability.
INSPECTION, CARE & USE
DO NOT exceed 60 angle when lifting.
DO NOT lift plates with a temperature greather than 100 degree.
DO NOT use to lift stainless steel lead or copper.
